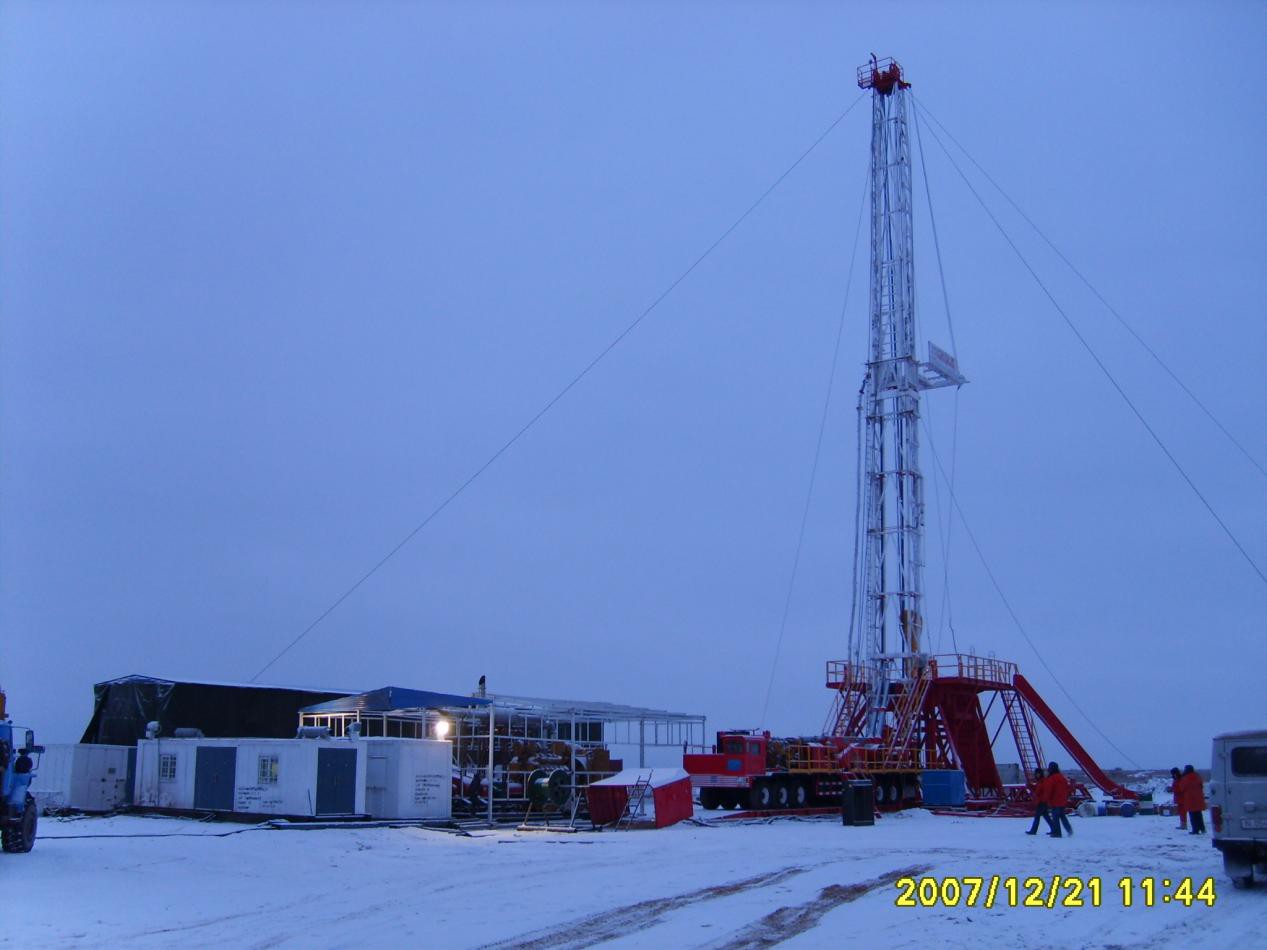

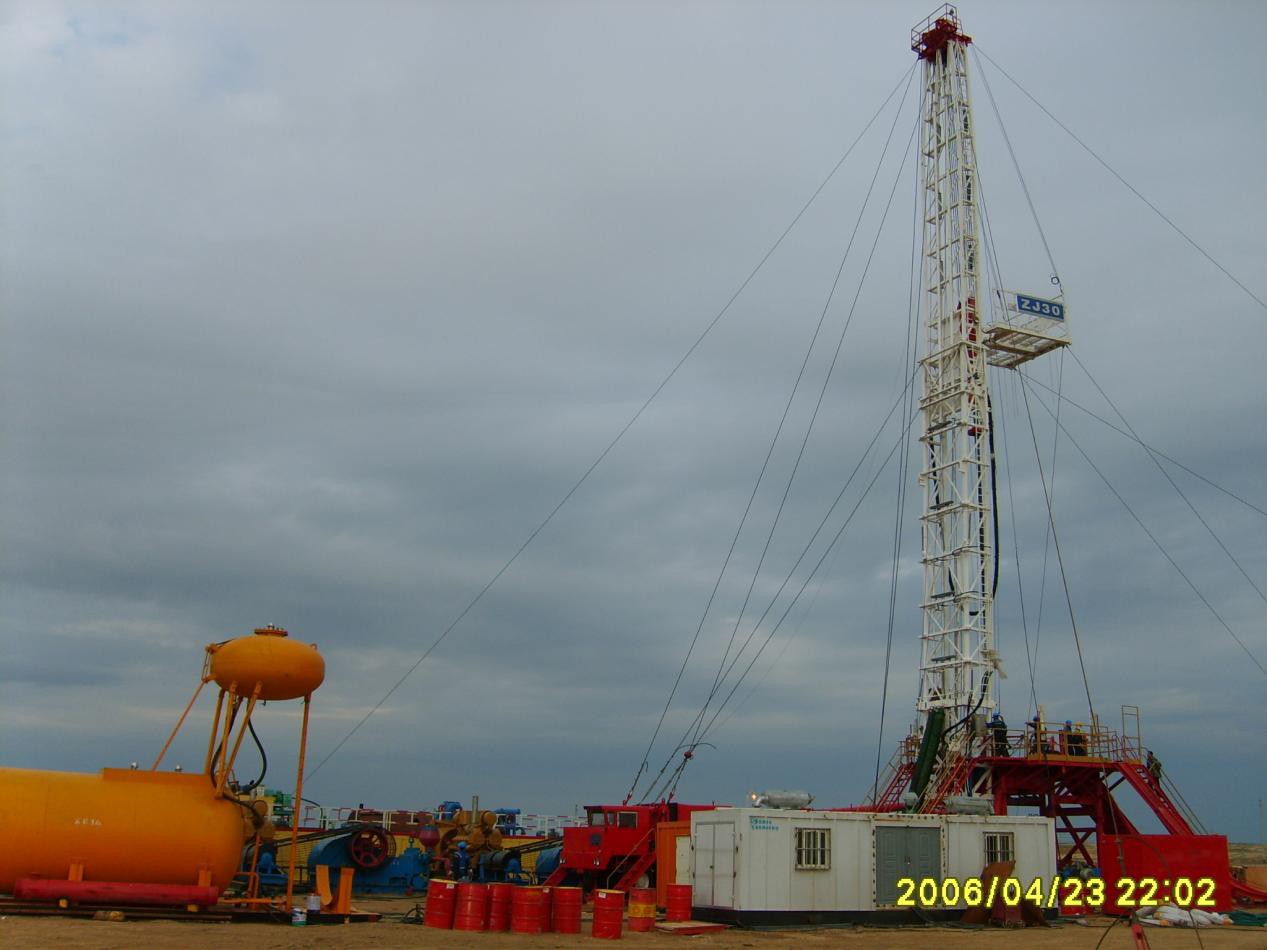

Application
Developed with several patented technologies, the RL-CZ30 truck-mounted drilling rig can be applied into oil well drilling engineers with drilling depth lower than 3000m.
Features
-
This drilling rig is powered by two independent diesel engines, which can operate either separately or in parallel, ensuring high operational safety and ease of maintenance.
-
The unit integrates mature parallel-operation transfer cases and Allison transmissions, delivering reliable power distribution and smooth performance.
-
The drawworks is equipped with a pneumatically controlled, water-cooled disc auxiliary brake for enhanced safety and control during operation.
-
The rig features a derrick constructed from rectangular tubes, available in heights of 36 or 38 meters, offering robust support for deep drilling operations.
-
Mounted on a reinforced 14×8 chassis with pneumatic suspension on the rear dual-wheel driven axle, the rig ensures optimal load distribution, superior mobility, and strong cross-country performance.
-
Customers can choose between 5.5-meter and 6-meter foldable drill floors, with the option of an integrated driller's cabin for improved operational comfort and control.
-
A top-drive system is also available as an optional upgrade to meet diverse drilling requirements.
Technical Parameters of RL-CZ30 Truck-Mounted Drilling Rig
|
Model |
RL-CZ30 |
|
Drilling depth (4-1/2" drill rod) (m)/(ft) |
3000 (9840) |
|
Workoverdepth(3-1/2" drill rod) m(ft) |
6500 (21325) |
|
Maximum hook load (kN)/(lb) |
1700 (381260) |
|
Drilling linediameter (mm/in.)/Effective line quantity |
029 (1-1/8")/8 |
|
Maximumhoisting speed of the hook (m/s)/(ft/s) |
1.36 (4.46) |
|
Overall dimension for removal (including derrick) (m)/(ft) |
21.25×3.3×4.47 (69.7×10.8×14.67) |
|
Weight (kg)/(lb) |
76000 (167548) |
|
Power system |
CAT3406C |
|
Engine power kW(hp)/(2100r/min) |
343×2 (460×2) |
|
Hydraulic transmission box model |
ALLISON-S5600×2 |
|
Emergency power source (motor) |
Optional |
|
Chassis driving mode |
14×8 |
|
Minimum turning diameter (m)/(ft) |
42 (137.8) |
|
Minimum ground clearance (mm)/(in.) |
340 (13.39) |
|
Drawworkstype |
Double rolling drums (single rolling drum) |
|
Drawworkspower (hp) |
750 |
|
Main rolling drum rope groove diameter× length(mm)/(in) |
Ф480×914.5 (Ф18.9×36) |
|
Main brake of the mainrolling drum |
Band type (hydraulic disk type is optional) |
|
Auxiliary brake of the mainrolling drum |
WCB324disk brake |
|
Lifting gear number of thedrawworks |
5 forwards and 1 reverse |
|
Derrick model (bimodal stretchable mast) |
JJ180/36-W/JJ180/38-W |
|
Derrick height(m)/(ft) |
36 (118.11)/38 (124.6) |
|
Racking platform height (m)/(ft) |
20.4 (66.9) |
|
Wind speed of operating environment (km/h)/(kn) |
110 (60) |
|
Control/lighting /power circuit |
24V/220V/380V (China) |
|
Rated pressure of liquid level pressure system (MPa)/(psi ) |
14/0.833-0.93(2002/119.12-133) |
|
Drill floor |
ZT2250/5-Z foldable drill floor |
|
Rotary table |
ZP205 |
|
Block hook |
YG170 |
|
Swivel |
SL225 |
