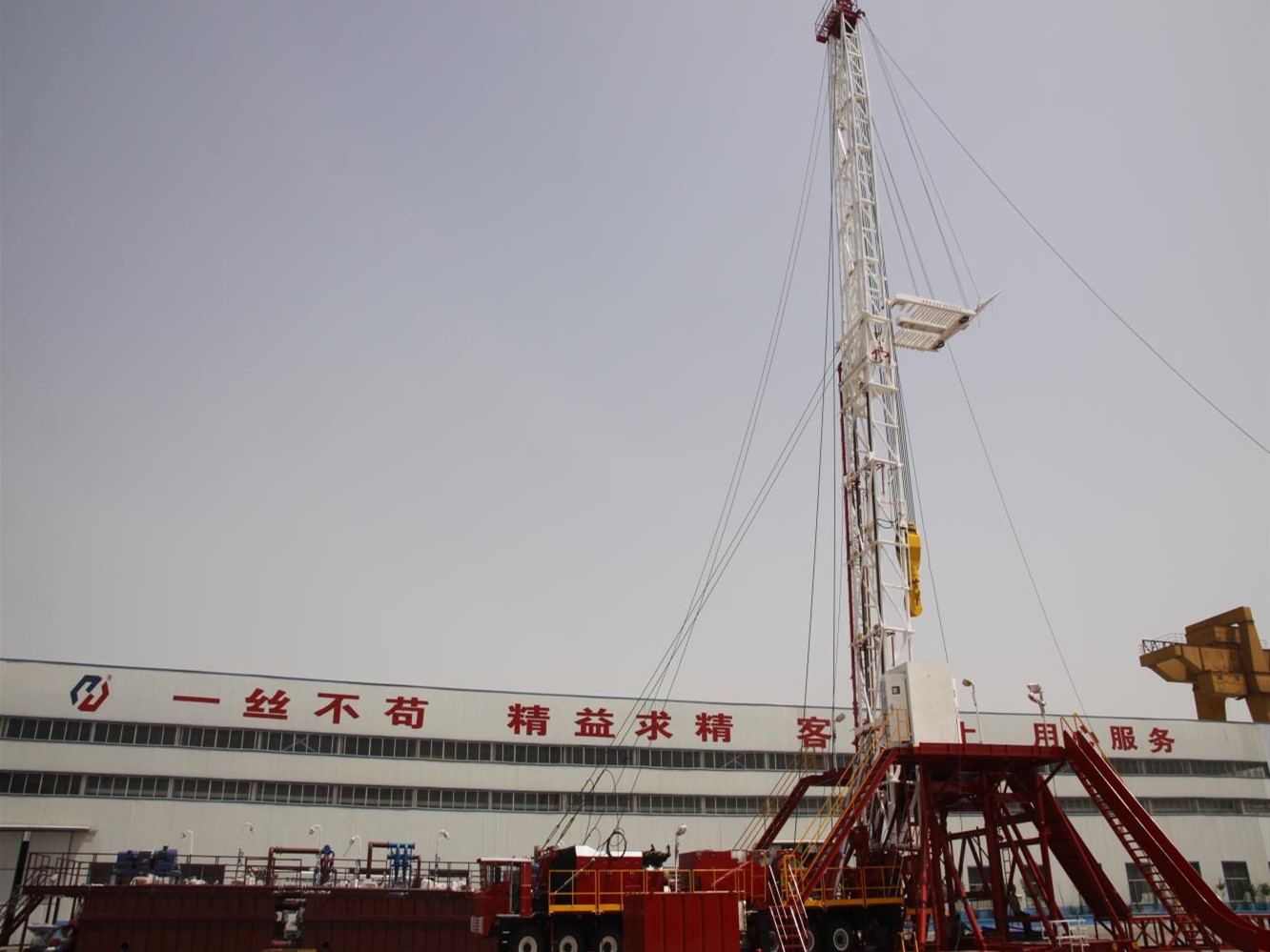

This product is the truck-mounted drilling rig which has the highest drilling depth among the truck-mounted drilling machines we have produced. It is also the largest self-propelled light-duty drilling equipment in the world. Our product can be used in exploration engineering to drill oil wells with the depth lower than 4000m.
Features
-
Our truck-mounted drilling rig features a highly reliable dual-engine parallel operation power system, integrated with a compound transmission system based on gear transfer cases. The two diesel engines can operate independently or in parallel depending on operational demands, significantly enhancing system redundancy and ease of maintenance.
-
The rig is mounted on a reinforced 14×10 chassis, engineered for optimal load distribution and exceptional cross-country mobility, ensuring stable performance even in rough terrains.
-
The 39-meter derrick, along with the main frame and key components, is constructed from specially selected materials with an optimized structural design, achieving a combination of high durability and reduced weight. This contributes to greater convenience during rig relocation.
-
For enhanced operational safety, the drawworks braking system consists of a hydraulic disk brake serving as the main brake, complemented by an Eaton pneumatically controlled water-cooling auxiliary brake for reliable backup performance.
-
The foldable drill floor features a robust structure, allowing for quick setup and stable support during drilling operations.
Technical Parameters
|
Nominal drilling depth |
4000m (drill rod:114mm) |
|
|
3200m (drill rod:127mm) |
||
|
Maximum hook load |
2250kN |
|
|
Rope system of travelling system |
5×6; Successively twined |
|
|
Rated power of drawworks |
735kW (1000hp) |
|
|
Gear number of drawworks |
4 forward |
6 forward +2 reverse |
|
Diameter of drilling wire rope |
Φ32mm |
|
|
Opening diameter of rotary table |
698.5mm (27 1/2") |
|
|
Gear number of rotary table |
4 forward+2 reverse |
6 forward +2 reverse |
|
Drilling pump quantity and power |
2×1300hp |
|
|
Substructure |
Block type |
Box-on-box type |
|
Substructure height and clearance height under rotary table beam |
7.5m; 6.3m |
6m; 4.8m |
|
Derrick shape and effective height |
K-shape; 43m |
|
|
Transmission mode |
Hydraulic transmission + compound belt transmission |
|
|
Main generator set quantity and power |
3×810kW |
|
|
Auxiliary generator set quantity and power |
2×400kW |
|
|
High pressure mud manifold |
Φ103mm (drift diameter)×35MPa |
|
|
Effective volume of solid control system |
260m³ |
|
